Neoprene

Timing Belts Rubber MXL, XL, L, H, XH, XXH & D

The trapezoidal tooth profile makes this belt well suited for use in positioning applications.



Markets/Applications
Suitable for office machines, machine tools, postage equipment, sewing machines, vending machines, agriculture, outdoor power equipment, food processing, HVAC, oil fields, wood, paper, sand and gravel applications.

Features/Advantages
- Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation.
- Neoprene body against grime, grease, oil and moisture.
- Nylon tooth facing provides a durable wear surface for long service life.
- Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives.
- Low bearing load because of freedom of high tension.
- Wide range of load capacities and speed ratios.
- Maintenance-free continuity of operation.
- Positive slip-proof engagement.




 Our available sizes including

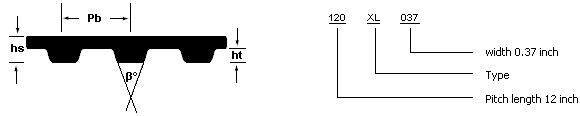

Type

Pitch / Pb(mm)

Tooth height / ht(mm)

Belt thickness / hs(mm)

Angleβ°

MXL >>

2.032

0.51

1.14

40

XL >>

5.08

1.27

2.3

50

L >>

9.525

1.91

3.6

40

H >>

12.7

2.29

4.3

40

XH >>

22.225

6.35

11.2

40

XXH >>

31.75

9.53

15.7

40



Example of Marking





s

PDF - Belts-Timing-AmericanStandard-MXL-XH-Neoprene.pdf
