UMR 150-40-132B5

819185 SKU No.

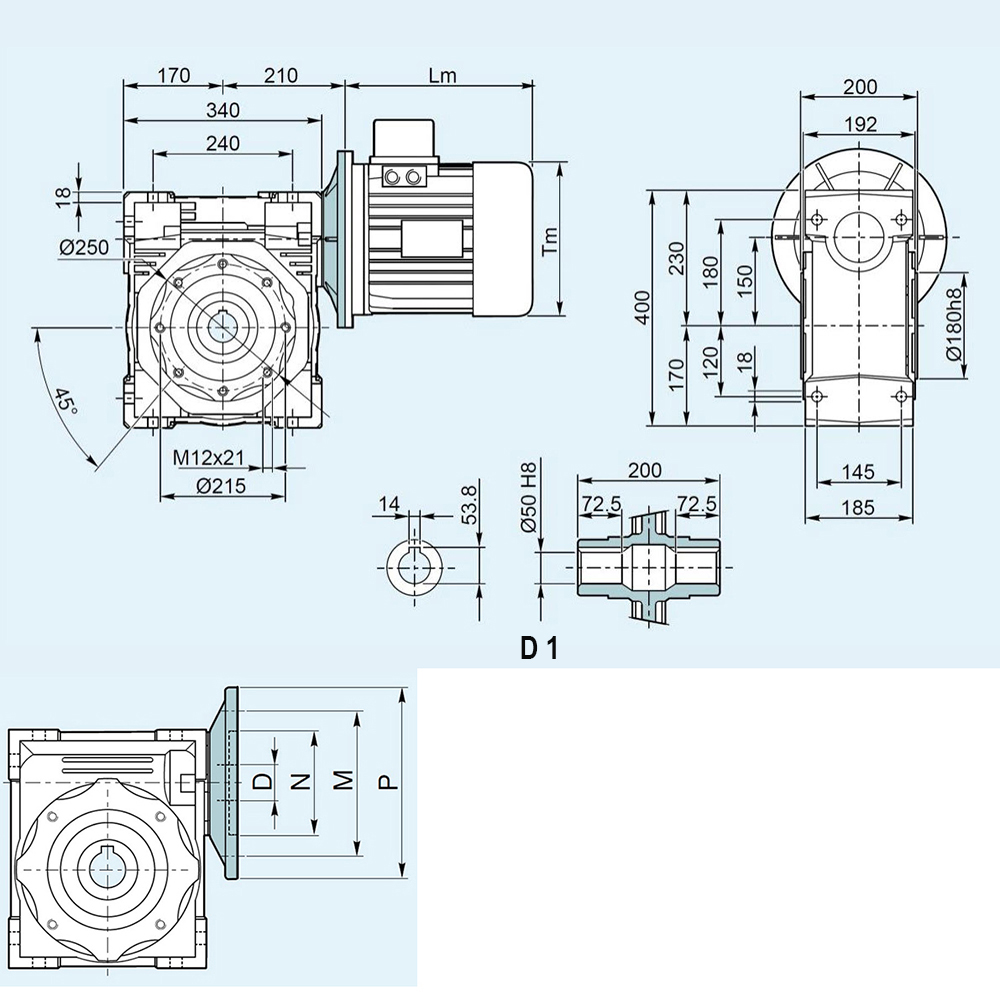

Motovario Type NMRV 150 Size Reducer

1:40 Ratio

132B5 Motor IEC Input Flange

38 mm IEC Input Shaft Diameter (D)

230 mm IEC Flange Recess (N)

265 mm IEC Bolt Circle Diameter (M)

300 mm IEC Outside Diameter (P)

240 mm Distance Between Mounting Holes (A) 80 mm Shaft Extension (B)

50 mm Output Shaft Diameter (D1)

210 mm (G)

175 mm (G3) 170 mm (H)

150 mm (I)

185 mm (L)

230 mm (R )
