UMR 130100-100B5

828432 SKU No.

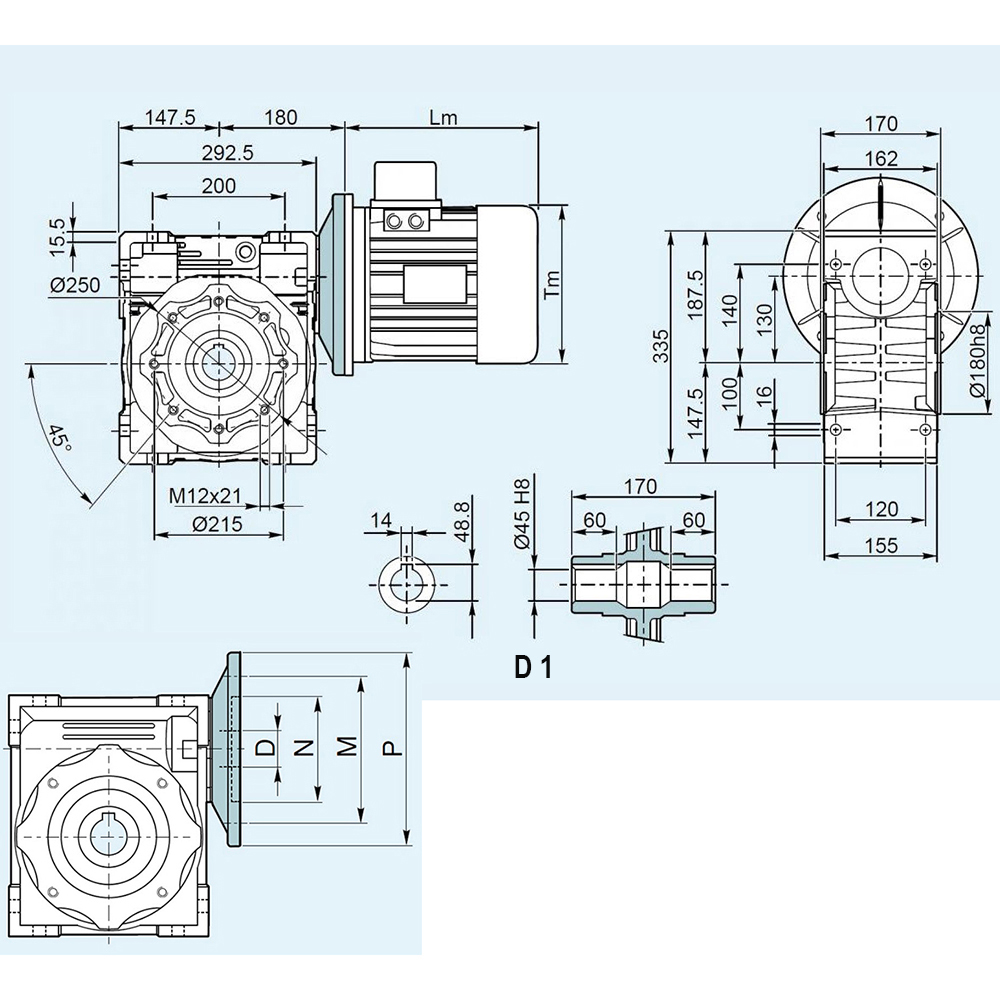

Motovario Type NMRV 130 Size Reducer

1:00 Ratio

100B5 Motor IEC Input Flange

28 mm IEC Input Shaft Diameter (D)

mm IEC Flange Recess (N)

mm IEC Bolt Circle Diameter (M)

200 mm Distance Between Mounting Holes (A) 80 mm Shaft Extension (B)

45 mm Output Shaft Diameter (D1)

180 mm (G)

155 mm (G3) 147,5 mm (H)

130 mm (I)

155 mm (L)

187,5 mm (R )
