FRD85 80B5 FLG

567160 SKU No.

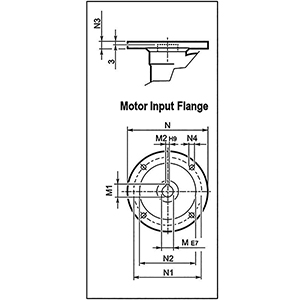

Bonfiglioli Type VF 86 - 80B5 Motor Input Flange

200 mm Outside Diameter (N )

130 mm Flange Face Inside Diameter (N1)

165 mm Bolt Circle Diameter (N2)

12 mm Hole Diameter (N4)

19 mm Bore for Motor Shaft (M E7)

6 mm Wide Slot for Keyway (M2 H9)

21.8 mm Height over Shaft and Keyway (M1)

10.58 kg
