UMR 75-7.5-100B5

859147 SKU No.

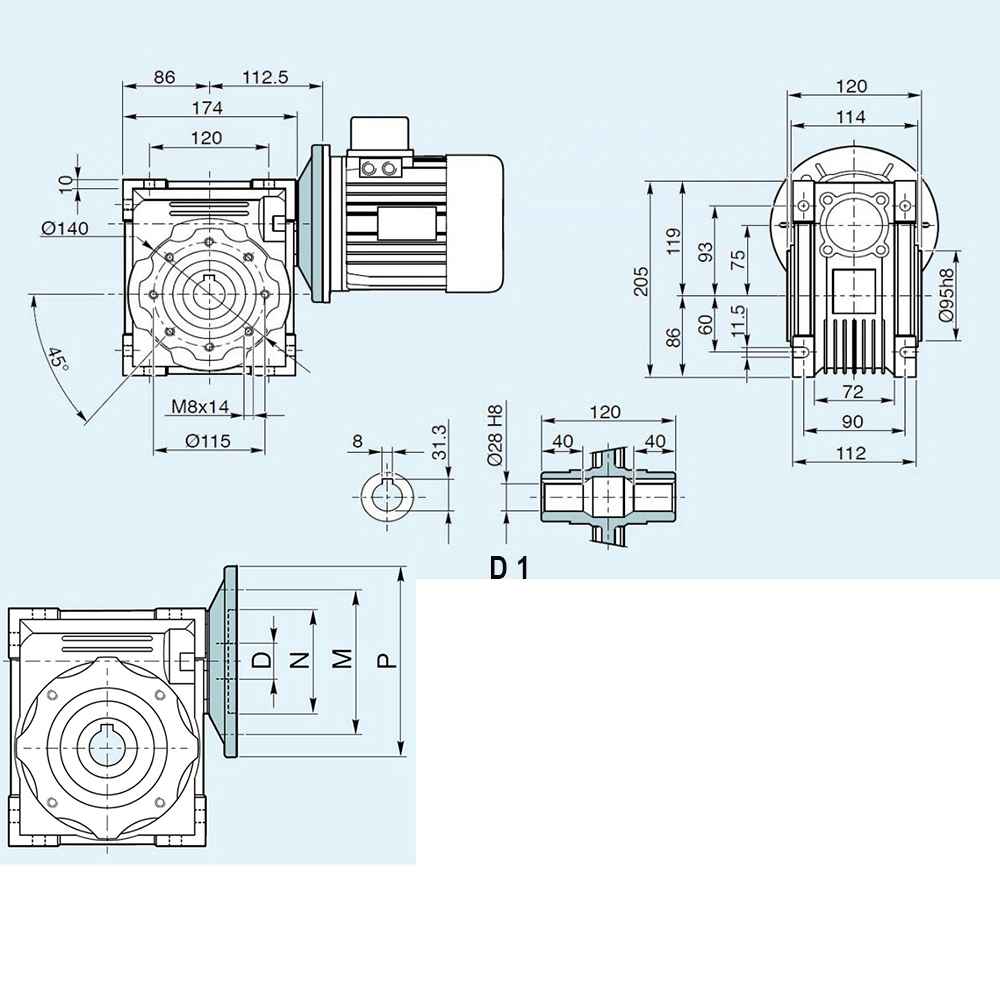

Motovario Type NMRV 75 Size Reducer

1:7.5 Ratio

100B5 Motor IEC Input Flange

28 mm IEC Input Shaft Diameter (D)

180 mm IEC Flange Recess (N)

215 mm IEC Bolt Circle Diameter (M)

250 mm IEC Outside Diameter (P)

120 mm Distance Between Mounting Holes (A) 50 mm Shaft Extension (B)

28 mm Output Shaft Diameter (D1)

126,5 mm (G)

90 mm (G3) 86 mm (H)

75 mm (I)

112 mm (L)

123 mm (R )
