UMR 50F180-71B5

571434 SKU No.

Motovario Type NMRV 50 Size Reducer

1:80 Ratio

71B5 Motor IEC Input Flange

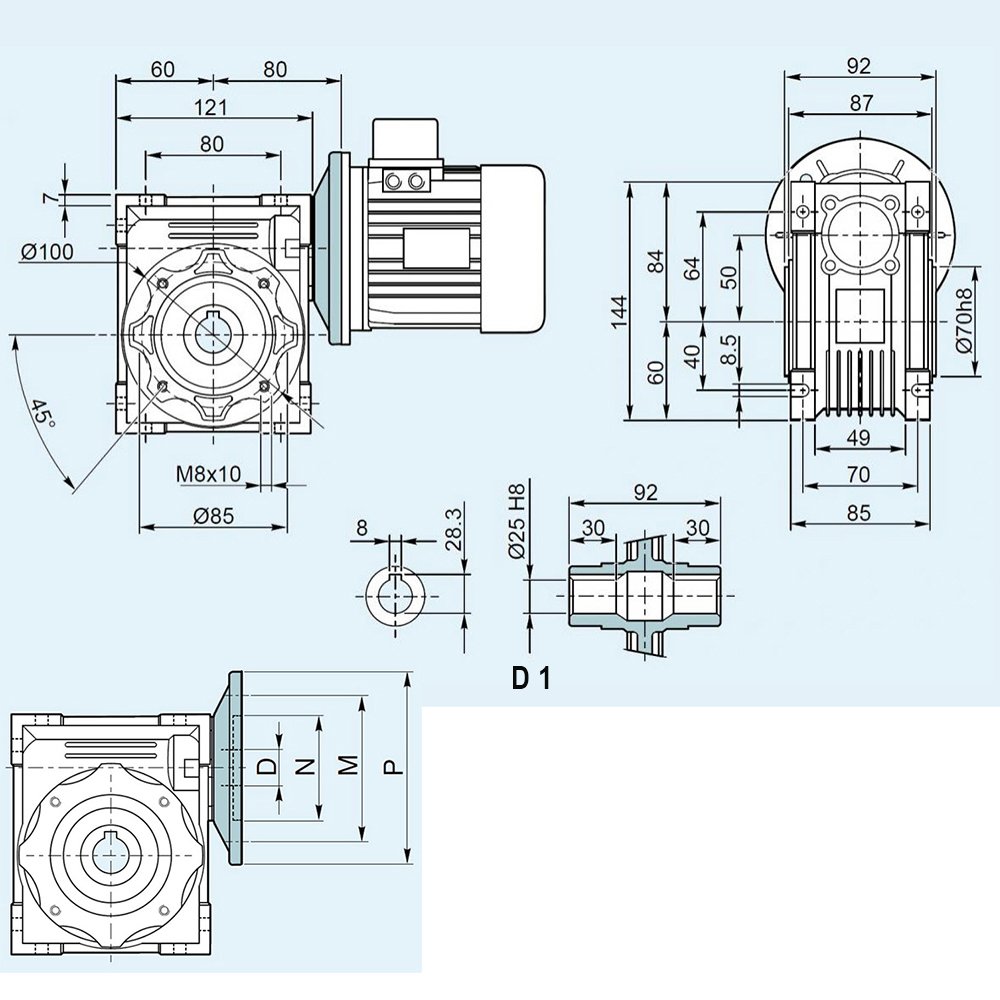

14 mm IEC Input Shaft Diameter (D)

110 mm IEC Flange Recess (N)

130 mm IEC Bolt Circle Diameter (M)

160 mm IEC Outside Diameter (P)

80 mm Distance Between Mounting Holes (A) 30 mm Shaft Extension (B)

25 mm Output Shaft Diameter (D1)

80 mm (G)

64 mm (G3) 60 mm (H)

50 mm (I)

85 mm (L)

84 mm (R )
