UMR 25-7.5-56B4

500770 SKU No.

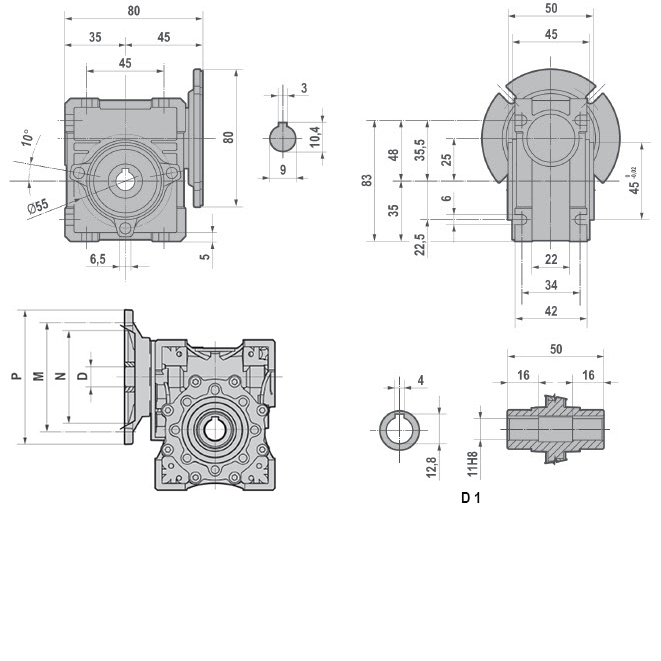

Motovario Type NMRV 25 Size Reducer

1:7.5 Ratio

56B4 Motor IEC Input Flange

9 mm IEC Input Shaft Diameter (D)

50 mm IEC Flange Recess (N)

65 mm IEC Bolt Circle Diameter (M)

80 mm IEC Outside Diameter (P)

45 mm Distance Between Mounting Holes (A) 11 mm Output Shaft Diameter (D1)

45 mm (G)

35 mm (G3) 35 mm (H)

25 mm (I)

42 mm (L)

48 mm (R )
