UMR 40-5-71B5

UMR 40-5-71B5

Price: $292.17
per pcs
Stock in Hand:5

Quick Overview

1-001-UMR 40-5-71B5 Ametric® Part Number


973832 SKU No.


Motovario Type NMRV 40 Size Reducer

1:5 Ratio

71B5 Motor IEC Input Flange

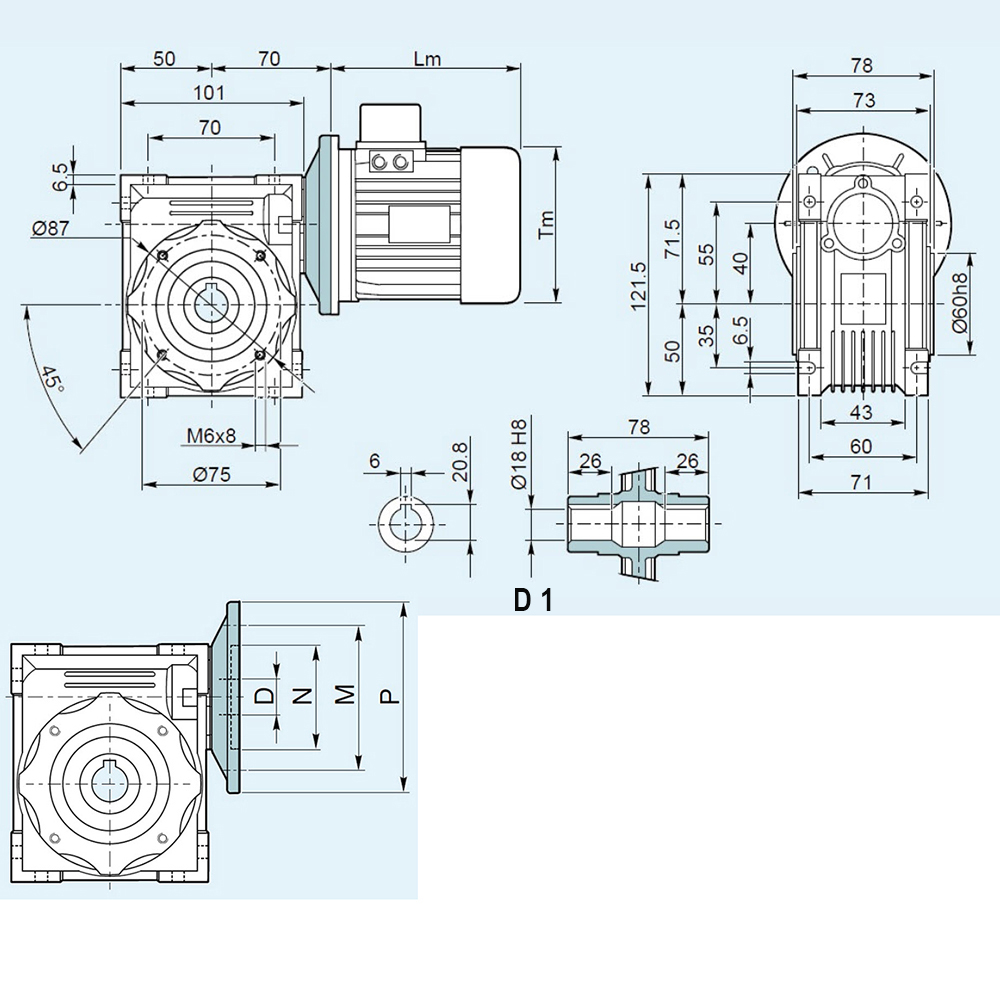

14 mm IEC Input Shaft Diameter (D)

110 mm IEC Flange Recess (N)

130 mm IEC Bolt Circle Diameter (M)

160 mm IEC Outside Diameter (P)

70 mm Distance Between Mounting Holes (A) 23 mm Shaft Extension (B)

18 mm Output Shaft Diameter (D1)

70 mm (G)

53 mm (G3) 50 mm (H)

40 mm (I)

71 mm (L)

71,5 mm (R )

Product Description

NMRV AMETRIC REDUCER
