UMR 30-10-N56C

UMR 30-10-N56C

Price: $424.03
per pcs
ITEM IS CURRENTLY OUT OF STOCK. EMAIL ORDERS@AMETRIC.COM FOR DELIVERY INFORMATION.

Quick Overview

1-001-UMR 30-10-N56C Ametric® Part Number


481015 SKU No.


Motovario Type NMRV 30 Size Reducer

1:10 Ratio

N56C Motor NEMA Input Flange

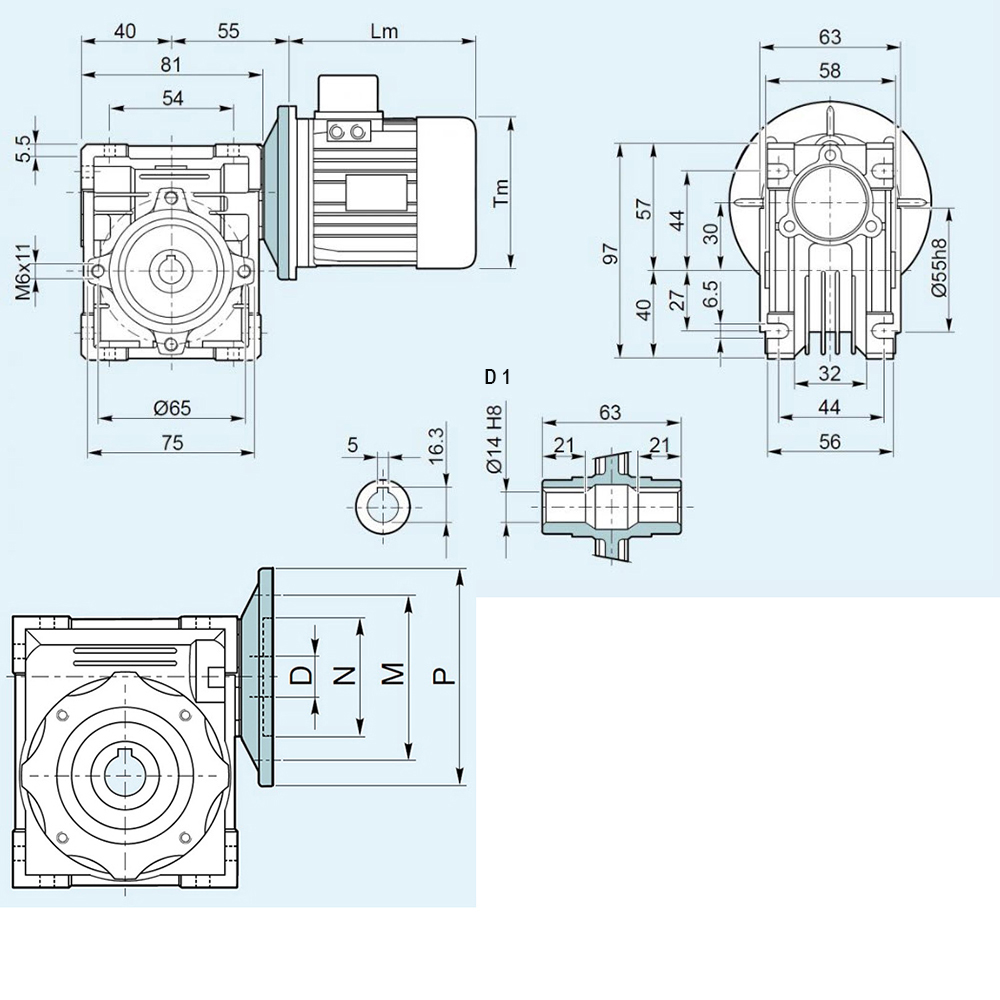

0.625 inch NEMA Input Shaft Diameter (D)

4.5 inch NEMA Flange Recess (N)

5.875 inch NEMA Bolt Circle Diameter (M)

6.5 inch NEMA Outside Diameter (P)

54 mm Distance Between Mounting Holes (A) 20 mm Shaft Extension (B)

0.625 inch Output Shaft Diameter (D1)

55 mm (G)

45 mm (G3) 40 mm (H)

30 mm (I)

56 mm (L)

57 mm (R )

Product Description

NMRV AMETRIC REDUCER
